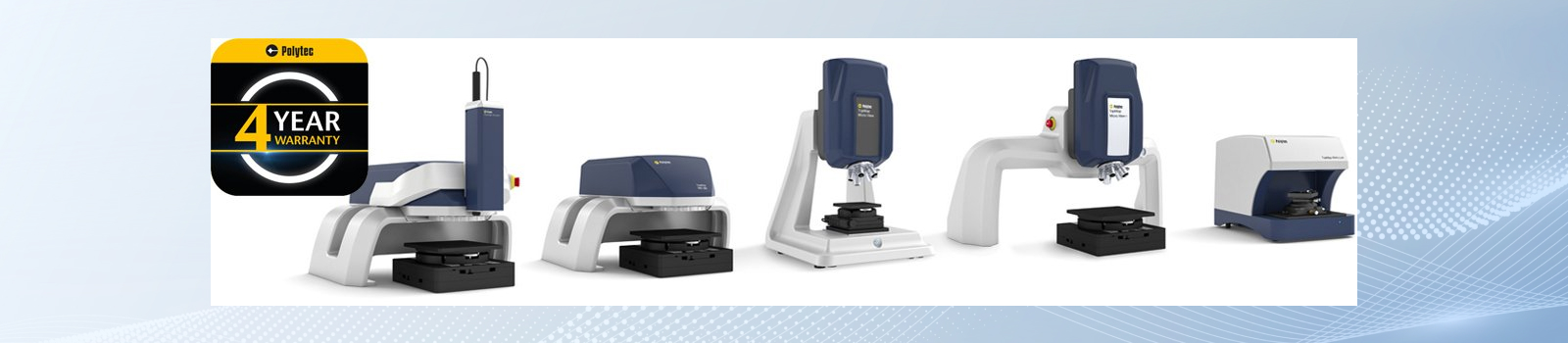

TopMap surface profilers

Polytec offers complete optical surface metrology solutions for quality inspections of engineered surfaces and form evaluation – whether flatness or step-height on CNC-machined precision parts, warpage and form on smooth optics, or texture, finish or MEMS and microstructure analysis.

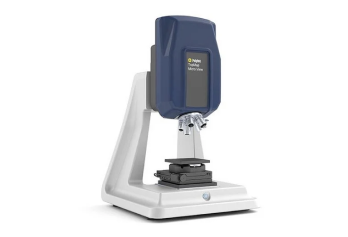

TopMap Micro.View®

Table-top optical surface profiler

  • Non‑contact 3D measurement of surface roughness and texture
  • Application-specific objectives NEW! 0.6X to 111X
  • 100 mm large Z measuring range with CST Continuous Scanning Technology

Explore product

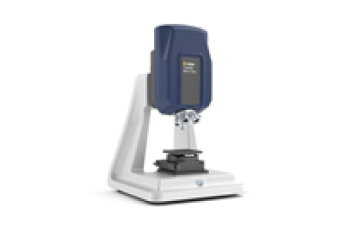

TopMap Micro.View®+

Next generation optical surface profiler for surface finish, surface roughness and microstructures

  • Micro.View®+ features the latest Focus Finder plus Focus Tracker, keeping the surface in focus at all circumstances
  • High-end white-light interferometer with nm resolution
  • Build your custom profiler (stages, objectives, stands, vibration isolation, spacers etc) with the modular setup

Explore product

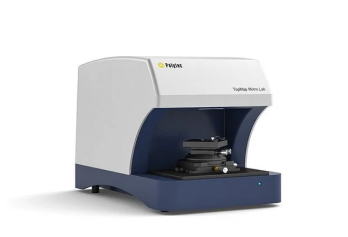

TopMap Metro.Lab

Areal surface and form characterization for smaller budgets

  • Non-contact due to the optical, interferometric measurement principle
  • Large measurement field of up to approximately 80 x 80 mm with the enhanced version
  • Suitable for almost all surfaces, even those with very different reflectivities, due to Smart Surface Scanning

Explore product

TopMap Pro.Surf

Measure form parameters like flatness, parallelism or step-height of big samples faster with large FOV

  • Quick and precise 3D surface characterization
  • Capture large or multiple samples in one shot with exceptionally large workspace XYZ 230 x 220 x 70 mm
  • SST Smart Scanning Technology + filter free master any surfaces, materials and reflectiveness

Explore product

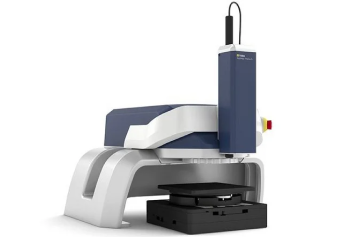

TopMap Pro.Surf+

Combined measurement of surface form + roughness with multi-sensor surface profilometer

  • Pro.Surf+ offers combined measurements of form parameters such as flatness, step height, parallelism plus additional roughness evaluation.
  • Pro.Surf+ offers combined measurements of form parameters such as flatness, step height, parallelism plus additional roughness evaluation.
  • Multi-sensor system to capture all surface and structural details

Explore product

Application Areas

  • img

    Automotive

    Explore product

  • img

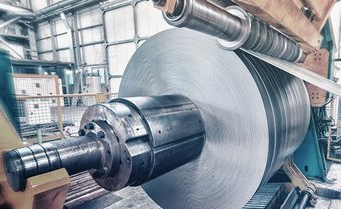

    Steel, Aluminium & Metals

    Explore product

  • img

    Ultra Precision Machining (UPM)

    Explore product

  • img

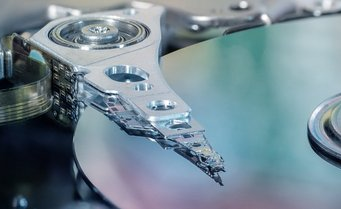

    Data Storage

    Explore product

  • img

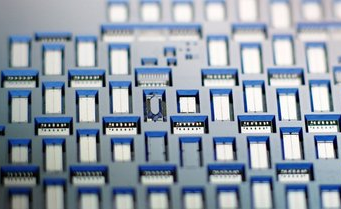

    Microtechnology & Nanotechnology

    Explore product

  • img

    Biology & Medicine

    Explore product

  • img

    Glass and transparent materials

    Explore product

  • img

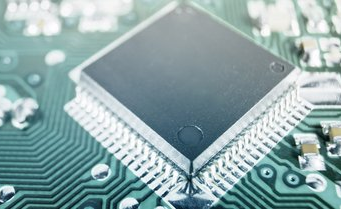

    Electronics, Semiconductors & Solar

    Exploreproduct
